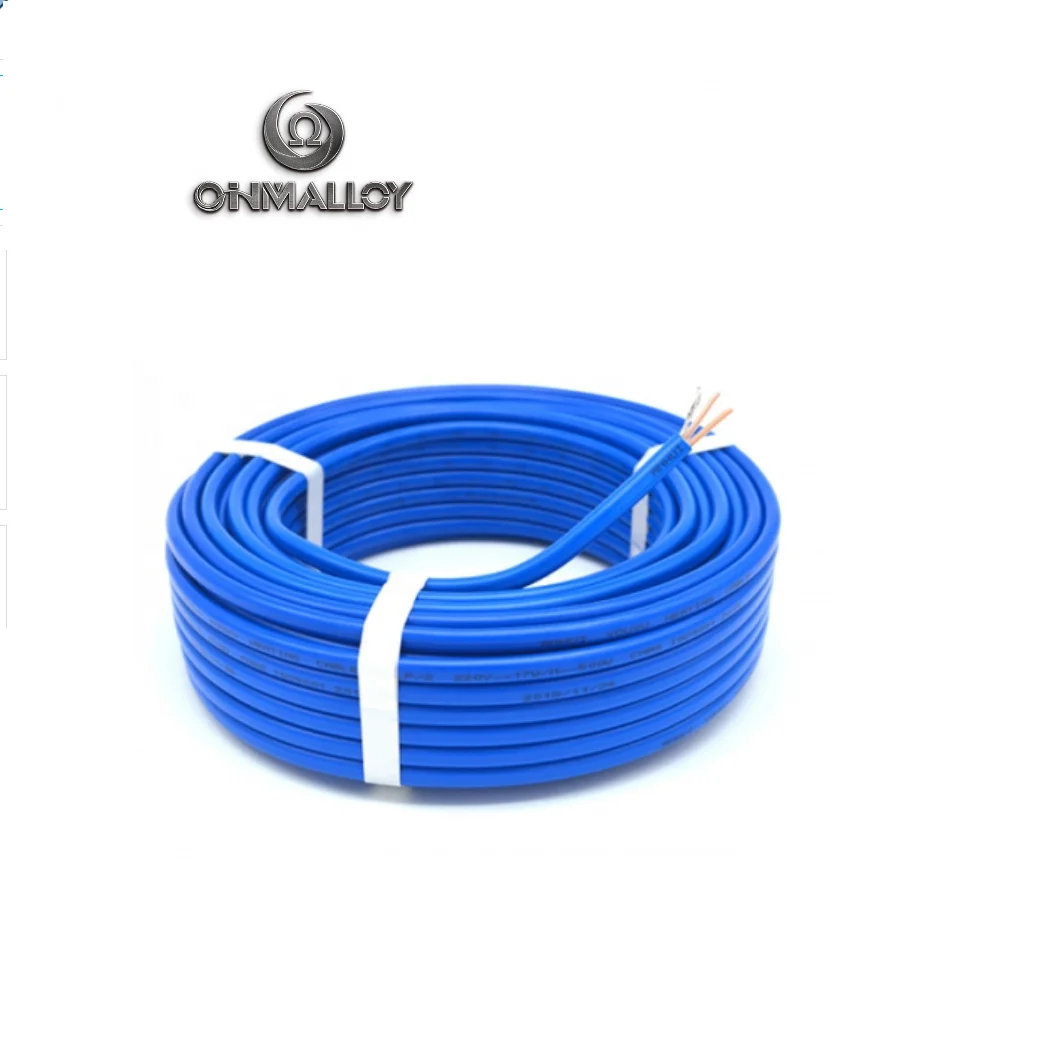

Dual Conductor 220V 2400W Insulated Resistance Wire

Brand Name : Ohmalloy

Model Number : TXLP/2/17

Certification : ISO CE

Place of Origin : China

MOQ : 200m/coil

Price : USD0.26/m

Payment Terms : L/C, T/T,

Supply Ability : 100000m/week

Delivery Time : within 7 days after payment

Packaging Details : coil

Conductor material : alloy resistance wire

Type : TXLP/2/17

Application : underfloor heating

Conductor type : Solid

Insulation material : XLPE

Color : Blue

Rated voltage : 220v

Jacket : PVC

Packing : 200m/coil

Contact Now

17w/m TXLP/2/17 dual conductor heating cable 220V 2400W for Room-Floor-Warming-Underfloor-Heating-Cable

The dual conductor heating cable assembly adopts implicit connector. The inner core is composed of cold wire and hot wire. The outside is composed of insulator, ground wire, shield and outer jacket.

After the heating cable is powered on, the hot wire will heat and operate at the temperature of 40-60 ℃. The heating cable embedded in the filling layer will be transmitted to the heat receiver by means of heat conduction and far-infrared radiation.

Dual conduction heating cable is mainly used in floor heating, soil heating, snow melting and ice melting, animal husbandry and so on.

Product structure and technical parameters

Structure Technical Parameter Structure Technical Parameter
Jacket Blue ( PVC ) Outer diameter 7.5x5 .6mm
Ground wire Tinned copper wire Voltage 220V (Customizable)
Shield wire Copper foil + copper wire Linear power 17w/m (Customizable)
Conductor Alloy resistance wire Cold lead length 2.25m
Inner Insulation Crosslinked polyethylene Max surface temp. 65°C
Connect Type Implicit connect Min bending coefficient 5D

Model:

TXLP/2 Series Dual-conductor heating cable (17w/m)

Power

(W)

 Cable Model

Voltage

(V)

Standard Length

(m)

 Power per meter(w/m)

Total resistance

(Ω)
3300 TXLP/2/17 220 194.1 17 14.7
2800 TXLP/2/17 220 164.7 17 17.3
2600 TXLP/2/17 220 152.9 17 18.6
2400 TXLP/2/17 220 141 17 20.2
2100 TXLP/2/17 220 123.5 17 23
1700 TXLP/2/17 220 100 17 28.6
1370 TXLP/2/17 220 80.6 17 35.3
1250 TXLP/2/17 220 73.5 17 38.7
1000 TXLP/2/17 220 58.8 17 48.4
840 TXLP/2/17 220 49.4 17 57.6
700 TXLP/2/17 220 41.2 17 68.1
600 TXLP/2/17 220 35.3 17 80.7
500 TXLP/2/17 220 29.4 17 96.8
400 TXLP/2/17 220 23.5 17 121
300 TXLP/2/17 220 17.6 17 161.3
